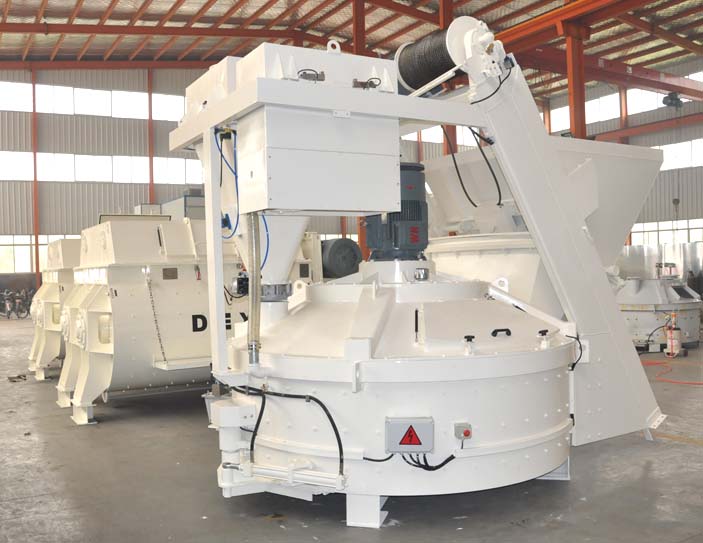

MMP-series Planetary Concrete Mixer is researched, developed and manufactured using advanced German technology. This kind of planetary concrete mixer has wider application than twin shaft forced concrete mixer and has better mixing performance for nearly all kinds of concrete such as common commercial concrete, precast concrete, low slump concrete, dry concrete, plastic fiber concrete etc. It also has solved many mixing problems about HPC (High Performance Concrete).

Service
Supply the most current design and technical expertise;
Supply parts sales and training service far beyond the initial sale;
Your profits with quality parts and expert service.

Item	Unit	Model
		MP50	MP100	MP150	MP250	MP330	MP500	MP750
Output Capacity	L	50	100	150	250	330	500	750
Input Capacity	L	75	150	225	375	500	750	1125
Output Mass	Kg	120	240	360	600	800	1200	1800
Mixing Power	Kw	3	5.5	7.5	11	15	18.5	30
Discharging Power	Kw	Pneumatic Discharge
		2.2Kw Hydraulic Discharge is optional
Mixing Arm*Paddle	Qty.	1*2	1*2	1*2	1*2	1*2	1*3	2*4
Side Scraper	Qty.	1	1	1	1	1	1	1
Discharging Scraper	Qty.	1	1	1	1	1	1
Weight	Kg	700	1300	1450	1600	1700	2400	3900
Dimension (L*W*H)	mm	950* 786*1200	1762* 1453*1447	1664* 1453*1617	1856* 1648*1772	1862* 1850*1870	2220* 2071*1895	2581* 2336*2195

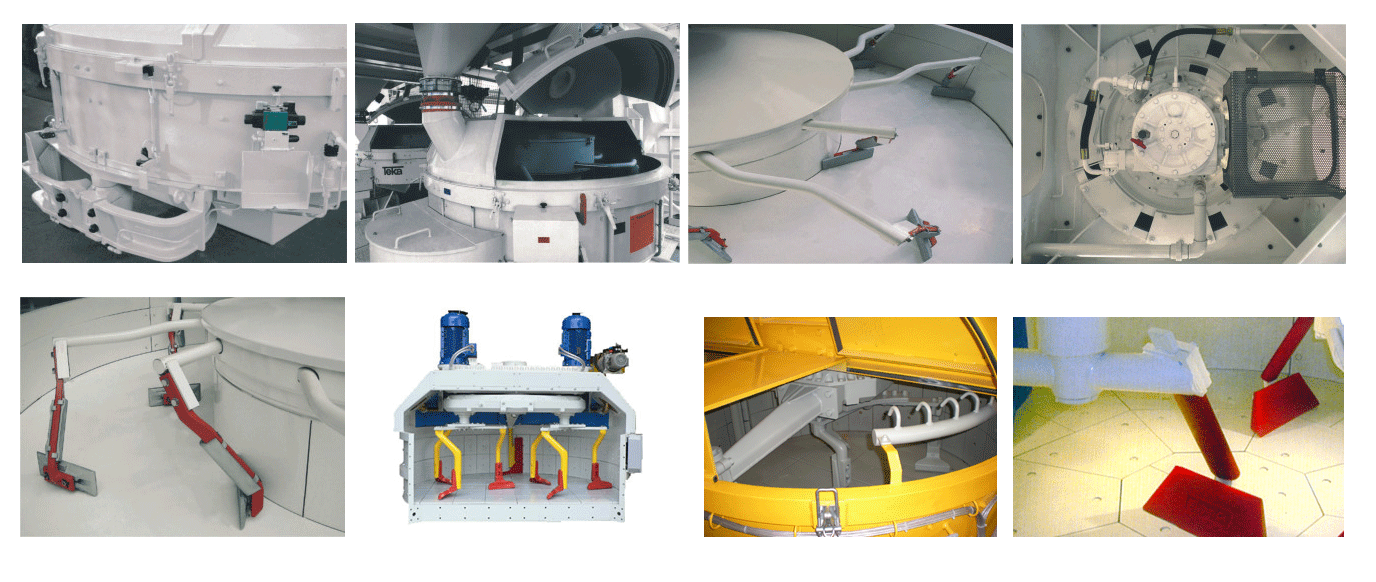

1 Strong, Steady, Fast and Homogeneous Mixing Performance
2 Vertical Shafts, Planetary Mixing Motion Track
3 Compact Structure, No Slurry Leakage Problem, Economic and Durable
4 Hydraulic or Pneumatic Discharging
