The multi-mould press MM-1500 is specifically designed for both of single-layer and double-layer products  (up to 1500×670 mm and with thickness from 20 to 200 mm in the standard version), but it is also suitable for molding tiles of smaller size.

For the tiles sized 1500X670 or 1200X600 mm, it is 1 piece per press.
For the tiles sized 800X800 and 600X600 mm, it is 2 piece per press.
For the tiles sized 400X400 and 300X300mm. It is 6 pieces per press.

Provided with automatic doser of the wet mixture with large-diameter dosing cups, the thickness of the tiles can be easily adjusted.

1. Hydraulic pressure
2. Steel mold
3. Vibration and vacuum system.


Service
Supply the most current design and technical expertise;
Supply parts sales and training service far beyond the initial sale;
Your profits with quality parts and expert service.

Model: MMVV1500
Pressure: 1200T (customized pressure is available)
 Power: 7.5+7.5+2.2 kw
Production: 1 pcs/min
Dimension: 7100X2300X3500 mm
Weight: 35T
Mold size: 1500X670/1200X600 X1 PC
mold size:800X800/ 600X600 X 2 PCS
Mold size: 400X400/ 300X300 X 6 PCS
Hydraulic system: Italian ATOS
Electrical system: Japanese MITSUBISHI

1.     Both for single-layer tiles and double-layer tiles
2.     Italian ATOS hydraulic system and Japanese MITSUBISHI PLC system.
3.     Besides high hydraulic pressure, it works with vibration and vacuum system
4.     Easy operation and maintenance

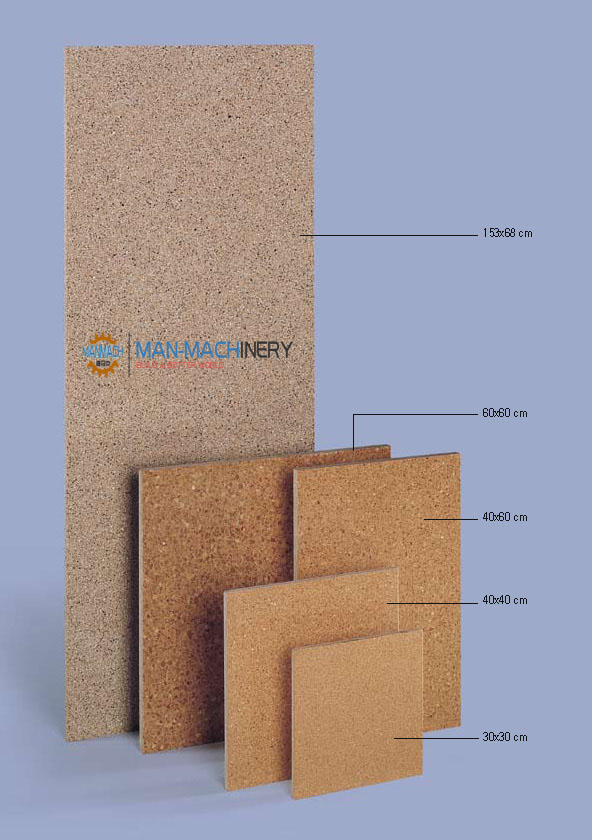

5.     Sizes of manufactured tiles: 300x300-1500x670mm
