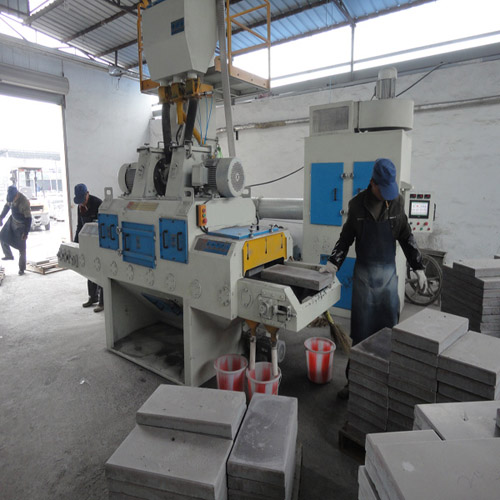

Shot-blasting machine

Application: For surface treatment of natural stone, stone slabs, marbles, paver block, glaze tiles, floor tiles, granite, ceramic, beton pieces or terrazzo etc. Equipment: auto rolls conveyor, blast wheel, blast chamber, screw conveyor, bucket eleva

Inquiry

Product introduction

Application: For surface treatment of natural stone, stone slabs, marbles, paver block, glaze tiles, floor tiles, granite, ceramic, beton pieces or terrazzo etc.

Equipment: auto rolls conveyor, blast wheel, blast chamber, screw conveyor, bucket elevator, separator, dust collector.
working principle
1. Use steel balls to make the surface rough
2. With high pressure

Service
Supply the most current design and technical expertise;
Supply parts sales and training service far beyond the initial sale;
Your profits with quality parts and expert service.
technical parameter
Model: MMST-800
Width:800
Thickness: 50~1500
Conveying speed (Frequency control) ：0.5-4 m/min
Shot initial feeding (kg)：800
Qty of blaster：2
Abrasive flow rate (kg/min)：2x180
Blasting speed (m/s)：78
Motor power (kw)：11
Fan of blowing pill (kw)：5.5-7.5
Total ventilation capacity (SQM/h)：100-200
Total power (kw):48
Performance characteristics
Only need 2-3 operators for high capacity 100-200m2/h.
Stone feeding speed and stone roughing effects adjustable
PLC control system, stable quality and easy to get support from local.
