Product introduction
Quality Management System complies with ISO 9001.
Machine passed CE International Certification.

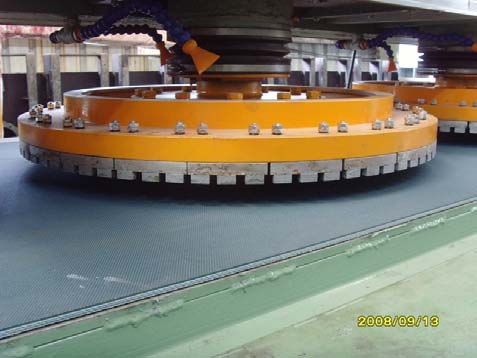

The rise and fall of the calibrating plate be locked by air pressure. It can calibrate tile with good flatness.
Adopt finish machining fittings and import component on machine, which lower malfunction and extend lifespan.
working principle
technical parameter
| Item | Unit |
MMC- 6C/8C-2 |
MMC - 6C/8C-3 |
MMC - 6C/8C-4 |
| Calibrating head dia. | mm | Ø630/Ø830 | Ø630/Ø830 | Ø630/Ø830 |
| Number of calibrating head | pcs | 2 | 3 | 4 |
| Spindle drive motor | hp/kw | 20/15X2 | 20/15X3 | 20/15X4 |
| Up/Down drive motor | hp/kw | 0.5/0.4X2 | 0.5/0.4X3 | 0.5/0.4X4 |
| Feed speed (conveyor belt) | hp/kw | 2/1.5 | 2/1.5 | 3/2.2 |
| Calibrating plate | rmp | 970/720 | 970/720 | 970/720 |
| Water consumption | m3/h | 4 | 6 | 8 |
| Air consumption | m3/h | 0.2 | 0.3 | 0.4 |
| Total power | hp/kw | 43/33 | 64/48 | 85/64 |
| Dimension (rollers excluded) |
mm (L*W*H) |
4055/4255 1700/1900 2200 |
4745/5345 1700/1900 2200 |
5425/6245 1700/1900 2200 |
| Machine weight | kg | 5000/5500 | 6000/6500 | 7000/7500 |
Performance characteristics
